arene::base::layout_right::mapping< Extents > Class Template Reference

A mapping from a logical pack of indices into a single flat physical output index. More...

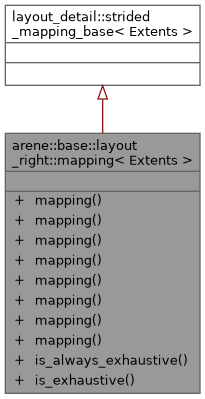

Inheritance diagram for arene::base::layout_right::mapping< Extents >:

Public Types
using	layout_type = layout_right
	The tag type of the layout used by this mapping.

Public Member Functions
constexpr	mapping () noexcept
	Construct a right-strided mapping for a default-constructed set of extents.
constexpr	mapping (extents_type const &exts) noexcept
	Construct a right-strided mapping for the given extents.
template<typename OtherExtents>
constexpr	mapping (layout_left::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a layout_left::mapping when both have 0- or 1-dimensional extents.
template<typename OtherExtents>
constexpr	mapping (layout_left::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a layout_left::mapping when both have 0- or 1-dimensional extents.
template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t< OtherExtents::rank()==rank_type{0U}> > = nullptr>
constexpr	mapping (layout_stride::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a layout_stride::mapping with a compatible extents_type.
template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<(OtherExtents::rank() > rank_type{0U})>>
constexpr	mapping (layout_stride::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a layout_stride::mapping with a compatible extents_type.
template<typename OtherExtents, constraints< std::enable_if_t< std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>
constexpr	mapping (mapping< OtherExtents > const &other) noexcept
	Converting constructor from a mapping with a different (but compatible) extents_type.
template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<!std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>
constexpr	mapping (mapping< OtherExtents > const &other) noexcept
	Converting constructor from a mapping with a different (but compatible) extents_type.

Static Public Member Functions
static constexpr auto	is_always_exhaustive () noexcept -> bool
	Return whether or not this mapping is always exhaustive, i.e. every element is reachable using some indices.
static constexpr auto	is_exhaustive () noexcept -> bool
	Return whether or not this instance is exhaustive, i.e. every element is reachable using some indices.

Friends
template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>
constexpr auto	operator!= (mapping const &left, mapping< OtherExtents > const &right) noexcept -> bool
	Compare two right-strided mappings for inequality.
template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>
constexpr auto	operator== (mapping const &left, mapping< OtherExtents > const &right) noexcept -> bool
	Compare two right-strided mappings for equality.
template<class... CanonicalSliceSpecifiers, constraints< std::enable_if_t< sizeof...(CanonicalSliceSpecifiers)==extents_type::rank()>, std::enable_if_t< mdspan_detail::all_valid_submdspan_slice_types_for_v< extents_type, CanonicalSliceSpecifiers... > > > = nullptr>
constexpr auto	submdspan_mapping (mapping const &src, CanonicalSliceSpecifiers... slices) noexcept -> CanonicalSliceSpecifiers... > >(mdspan_detail::is_submdspan_layout_preserving< layout_right, submdspan_subextents_type_t< extents_type, CanonicalSliceSpecifiers... >::rank(), CanonicalSliceSpecifiers... >{}, src, mapping::passkey(), mapping::strides_of(src), std::move(slices)...))
	Compute the sub-mapping for a layout_right::mapping.

Detailed Description

template<class Extents>
class arene::base::layout_right::mapping< Extents >

A mapping from a logical pack of indices into a single flat physical output index.

Template Parameters

The	extents of the space used for this mapping; must be a specialization of extents

Member Typedef Documentation

layout_type

template<class Extents>

using arene::base::layout_right::mapping< Extents >::layout_type = layout_right

The tag type of the layout used by this mapping.

Constructor & Destructor Documentation

mapping() [1/8]

template<class Extents>

arene::base::layout_right::mapping< Extents >::mapping ( )

inlineconstexprnoexcept

Construct a right-strided mapping for a default-constructed set of extents.

mapping() [2/8]

template<class Extents>

arene::base::layout_right::mapping< Extents >::mapping ( extents_type const & exts )

inlineconstexprnoexcept

Construct a right-strided mapping for the given extents.

Parameters

exts	The extents to use

Precondition

The size of the index space represented by exts fits within index_type, else ARENE_PRECONDITION violation

mapping() [3/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>

arene::base::layout_right::mapping< Extents >::mapping ( mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a mapping with a different (but compatible) extents_type.

Note

This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The other layout_right::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

mapping() [4/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<!std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>

arene::base::layout_right::mapping< Extents >::mapping ( mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a mapping with a different (but compatible) extents_type.

Note

This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The other layout_right::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

mapping() [5/8]

template<class Extents>

template<typename OtherExtents>

arene::base::layout_right::mapping< Extents >::mapping ( layout_left::mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a layout_left::mapping when both have 0- or 1-dimensional extents.

Note

This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The layout_left::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

mapping() [6/8]

template<class Extents>

template<typename OtherExtents>

arene::base::layout_right::mapping< Extents >::mapping ( layout_left::mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a layout_left::mapping when both have 0- or 1-dimensional extents.

Note

This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The layout_left::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

mapping() [7/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t< OtherExtents::rank()==rank_type{0U}> > = nullptr>

arene::base::layout_right::mapping< Extents >::mapping ( layout_stride::mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a layout_stride::mapping with a compatible extents_type.

Note

This is implicit if and only if OtherExtents::rank() == 0

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The layout_stride::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

other's strides are exactly those of a layout_right::mapping with its extents, else ARENE_PRECONDITION violation

mapping() [8/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<(OtherExtents::rank() > rank_type{0U})>>

arene::base::layout_right::mapping< Extents >::mapping ( layout_stride::mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a layout_stride::mapping with a compatible extents_type.

Note

This is implicit if and only if OtherExtents::rank() == 0

Template Parameters

OtherExtents

Type of other's extents

Parameters

other

The layout_stride::mapping

Precondition

other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

other's strides are exactly those of a layout_right::mapping with its extents, else ARENE_PRECONDITION violation

Member Function Documentation

is_always_exhaustive()

template<class Extents>

static constexpr auto arene::base::layout_right::mapping< Extents >::is_always_exhaustive ( ) -> bool

inlinestaticconstexprnoexcept

Return whether or not this mapping is always exhaustive, i.e. every element is reachable using some indices.

Returns

true because the mapping is always computed by a simple invertible right-strided algorithm

Note

In mathematical terms this asks if the mapping is always surjective/onto.

is_exhaustive()

template<class Extents>

static constexpr auto arene::base::layout_right::mapping< Extents >::is_exhaustive ( ) -> bool

inlinestaticconstexprnoexcept

Return whether or not this instance is exhaustive, i.e. every element is reachable using some indices.

Returns

true if every provided stride is the product of the extents corresponding to some subset of the other strides, otherwise false

Note

In mathematical terms this asks if the mapping is surjective/onto.

Friends And Related Symbol Documentation

operator!=

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>

auto operator!= ( mapping< Extents > const & left, mapping< OtherExtents > const & right ) -> bool

friend

Compare two right-strided mappings for inequality.

Template Parameters

OtherExtents

The type of the extents used by the right-hand side of the comparison

Parameters

left	An instance of layout_right::mapping
right	An instance of layout_right::mapping<OtherExtents>

Returns

true if left and right have unequal extents

operator==

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>

auto operator== ( mapping< Extents > const & left, mapping< OtherExtents > const & right ) -> bool

friend

Compare two right-strided mappings for equality.

Template Parameters

OtherExtents

The type of the extents used by the right-hand side of the comparison

Parameters

left	An instance of layout_right::mapping
right	An instance of layout_right::mapping<OtherExtents>

Returns

true if left and right have equal extents

submdspan_mapping

template<class Extents>

template<class... CanonicalSliceSpecifiers, constraints< std::enable_if_t< sizeof...(CanonicalSliceSpecifiers)==extents_type::rank()>, std::enable_if_t< mdspan_detail::all_valid_submdspan_slice_types_for_v< extents_type, CanonicalSliceSpecifiers... > > > = nullptr>

auto submdspan_mapping ( mapping< Extents > const & src, CanonicalSliceSpecifiers... slices ) -> CanonicalSliceSpecifiers...>>( mdspan_detail::is_submdspan_layout_preserving< layout_right, submdspan_subextents_type_t<extents_type, CanonicalSliceSpecifiers...>::rank(), CanonicalSliceSpecifiers...>{}, src, mapping::passkey(), mapping::strides_of(src), std::move(slices)... ))

friend

Compute the sub-mapping for a layout_right::mapping.

Template Parameters

CanonicalSliceSpecifiers

types of the slice specifiers, one per dimension

Parameters

src	the source mapping to slice
slices	the slice specifiers

Uses slices to compute the sub-extents, sub-strides, and offset of the submdspan. The slices must be in canonical form.

Returns

A submdspan_mapping_result containing the sub-mapping and offset such that indexing the sub-mapping and adding the offset recovers the corresponding index in the original mapping.

Note

Constraints

• sizeof...(CanonicalSliceSpecifiers) == extents_type::rank()
• for each rank index k of src.extents(), CanonicalSliceSpecifiers...[k] is a valid submdspan slice type for the k-th extent of extents_type

Preconditions

• for each rank index k of src.extents(), slices...[k] denotes a valid submdspan slice for the k-th extent of src.extents()

Remarks

• the layout_right specialization of submdspan_mapping produces a layout_right::mapping if:
  • for each k in the range [SubExtents::rank() - 1, extents_type::rank()) , CanonicalSliceSpecifiers...[k] denotes full_extent_t; and
  • for k equal to extents_type::rank() - SubExtents::rank() , CanonicalSliceSpecifiers...[k] is a unit-stride slice type;
• Otherwise, it produces a layout_stride::mapping.

---

The documentation for this class was generated from the following file:

• arene/base/mdspan/layout_right.hpp
