A mapping from a logical pack of indices into a single flat physical output index. More...

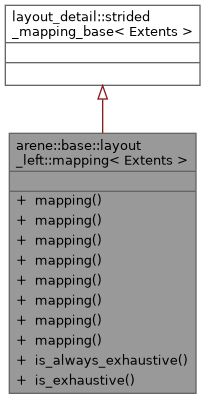

Inheritance diagram for arene::base::layout_left::mapping< Extents >:

Public Types
using	layout_type = layout_left
	The tag type of the layout used by this `mapping`.

Public Member Functions
constexpr	mapping () noexcept
	Construct a default left-strided mapping for the given extents.

constexpr	mapping (extents_type const &exts) noexcept
	Construct a left-strided mapping for the given extents.

template<typename OtherExtents>
constexpr	mapping (layout_right::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a `layout_right::mapping` when both have 0- or 1-dimensional extents.

template<typename OtherExtents>
constexpr	mapping (layout_right::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a `layout_right::mapping` when both have 0- or 1-dimensional extents.

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t< OtherExtents::rank()==rank_type{0U}> > = nullptr>
constexpr	mapping (layout_stride::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a `layout_stride::mapping` with a compatible `extents_type`.

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<(OtherExtents::rank() > rank_type{0U})>>
constexpr	mapping (layout_stride::mapping< OtherExtents > const &other) noexcept
	Converting constructor from a `layout_stride::mapping` with a compatible `extents_type`.

template<typename OtherExtents, constraints< std::enable_if_t< std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>
constexpr	mapping (mapping< OtherExtents > const &other) noexcept
	Converting constructor from a mapping with a different (but compatible) `extents_type`.

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<!std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>
constexpr	mapping (mapping< OtherExtents > const &other) noexcept
	Converting constructor from a mapping with a different (but compatible) `extents_type`.

Static Public Member Functions
static constexpr auto	is_always_exhaustive () noexcept -> bool
	Return whether or not this mapping is always exhaustive, i.e. every element is reachable using some indices.

static constexpr auto	is_exhaustive () noexcept -> bool
	Return whether or not this instance is exhaustive, i.e. every element is reachable using some indices.

Friends
template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>
constexpr auto	operator!= (mapping const &left, mapping< OtherExtents > const &right) noexcept -> bool
	Compare two left-strided mappings for inequality.

template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>
constexpr auto	operator== (mapping const &left, mapping< OtherExtents > const &right) noexcept -> bool
	Compare two left-strided mappings for equality.

template<class... CanonicalSliceSpecifiers, constraints< std::enable_if_t< sizeof...(CanonicalSliceSpecifiers)==extents_type::rank()>, std::enable_if_t< mdspan_detail::all_valid_submdspan_slice_types_for_v< extents_type, CanonicalSliceSpecifiers... > > > = nullptr>
constexpr auto	submdspan_mapping (mapping const &src, CanonicalSliceSpecifiers... slices) noexcept -> CanonicalSliceSpecifiers... > >(mdspan_detail::is_submdspan_layout_preserving< layout_left, submdspan_subextents_type_t< extents_type, CanonicalSliceSpecifiers... >::rank(), CanonicalSliceSpecifiers... >{}, src, mapping::passkey(), mapping::strides_of(src), std::move(slices)...))
	Compute the sub-mapping for a `layout_left::mapping`.

Detailed Description

template<class Extents>
class arene::base::layout_left::mapping< Extents >

A mapping from a logical pack of indices into a single flat physical output index.

Template Parameters

The	extents of the space used for this mapping; must be a specialization of `extents`

Member Typedef Documentation

◆ layout_type

template<class Extents>

using arene::base::layout_left::mapping< Extents >::layout_type = layout_left

The tag type of the layout used by this mapping.

Constructor & Destructor Documentation

◆ mapping() [1/8]

template<class Extents>

arene::base::layout_left::mapping< Extents >::mapping ( )

inlineconstexprnoexcept

Construct a default left-strided mapping for the given extents.

◆ mapping() [2/8]

template<class Extents>

arene::base::layout_left::mapping< Extents >::mapping ( extents_type const & exts )

inlineconstexprnoexcept

Construct a left-strided mapping for the given extents.

Parameters

exts	The extents to use

Precondition: The size of the index space represented by exts fits within index_type, else ARENE_PRECONDITION violation

◆ mapping() [3/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>

arene::base::layout_left::mapping< Extents >::mapping ( mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a mapping with a different (but compatible) extents_type.

Note: This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents Type of other's extents

Parameters

other The other layout_left::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

◆ mapping() [4/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<!std::is_convertible< OtherExtents, extents_type >::value > > = nullptr>

arene::base::layout_left::mapping< Extents >::mapping ( mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a mapping with a different (but compatible) extents_type.

Note: This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents Type of other's extents

Parameters

other The other layout_left::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

◆ mapping() [5/8]

template<class Extents>

template<typename OtherExtents>

arene::base::layout_left::mapping< Extents >::mapping ( layout_right::mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a layout_right::mapping when both have 0- or 1-dimensional extents.

Note: This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents Type of other's extents

Parameters

other The layout_right::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

◆ mapping() [6/8]

template<class Extents>

template<typename OtherExtents>

arene::base::layout_left::mapping< Extents >::mapping ( layout_right::mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a layout_right::mapping when both have 0- or 1-dimensional extents.

Note: This is implicit if and only if OtherExtents is implicitly convertible to extents_type

Template Parameters

OtherExtents Type of other's extents

Parameters

other The layout_right::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation

◆ mapping() [7/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t< OtherExtents::rank()==rank_type{0U}> > = nullptr>

arene::base::layout_left::mapping< Extents >::mapping ( layout_stride::mapping< OtherExtents > const & other )

inlineconstexprnoexcept

Converting constructor from a layout_stride::mapping with a compatible extents_type.

Note: This is implicit if and only if OtherExtents::rank() == 0

Template Parameters

OtherExtents Type of other's extents

Parameters

other The layout_stride::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation; other's strides are exactly those of a layout_right::mapping with its extents, else ARENE_PRECONDITION violation

◆ mapping() [8/8]

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< std::is_constructible< extents_type, OtherExtents >::value >, std::enable_if_t<(OtherExtents::rank() > rank_type{0U})>>

arene::base::layout_left::mapping< Extents >::mapping ( layout_stride::mapping< OtherExtents > const & other )

inlineexplicitconstexprnoexcept

Converting constructor from a layout_stride::mapping with a compatible extents_type.

Note: This is implicit if and only if OtherExtents::rank() == 0

Template Parameters

OtherExtents Type of other's extents

Parameters

other The layout_stride::mapping

Precondition: other.required_span_size() can be represented as a value of this type's index_type, else ARENE_PRECONDITION violation; other's strides are exactly those of a layout_right::mapping with its extents, else ARENE_PRECONDITION violation

Member Function Documentation

◆ is_always_exhaustive()

template<class Extents>

static constexpr auto arene::base::layout_left::mapping< Extents >::is_always_exhaustive ( ) -> bool

inlinestaticconstexprnoexcept

Return whether or not this mapping is always exhaustive, i.e. every element is reachable using some indices.

Returns: true because the mapping is always computed by a simple invertible left-strided algorithm

Note: In mathematical terms this asks if the mapping is always surjective/onto.

◆ is_exhaustive()

template<class Extents>

static constexpr auto arene::base::layout_left::mapping< Extents >::is_exhaustive ( ) -> bool

inlinestaticconstexprnoexcept

Return whether or not this instance is exhaustive, i.e. every element is reachable using some indices.

Returns: true if every provided stride is the product of the extents corresponding to some subset of the other strides, otherwise false

Note: In mathematical terms this asks if the mapping is surjective/onto.

Friends And Related Symbol Documentation

◆ operator!=

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>

auto operator!=	(	mapping< Extents > const &	left,
		mapping< OtherExtents > const &	right ) -> bool

friend

Compare two left-strided mappings for inequality.

Template Parameters

OtherExtents The type of the extents used by the right-hand side of the comparison

Parameters

left	An instance of `layout_left::mapping`
right	An instance of `layout_left::mapping<OtherExtents>`

Returns: true if left and right have unequal extents

◆ operator==

template<class Extents>

template<typename OtherExtents, constraints< std::enable_if_t< extents_type::rank()==OtherExtents::rank()> > = nullptr>

auto operator==	(	mapping< Extents > const &	left,
		mapping< OtherExtents > const &	right ) -> bool

friend

Compare two left-strided mappings for equality.

Template Parameters

OtherExtents The type of the extents used by the right-hand side of the comparison

Parameters

left	An instance of `layout_left::mapping`
right	An instance of `layout_left::mapping<OtherExtents>`

Returns: true if left and right have equal extents

◆ submdspan_mapping

template<class Extents>

template<class... CanonicalSliceSpecifiers, constraints< std::enable_if_t< sizeof...(CanonicalSliceSpecifiers)==extents_type::rank()>, std::enable_if_t< mdspan_detail::all_valid_submdspan_slice_types_for_v< extents_type, CanonicalSliceSpecifiers... > > > = nullptr>

auto submdspan_mapping	(	mapping< Extents > const &	src,
		CanonicalSliceSpecifiers...	slices ) -> CanonicalSliceSpecifiers...>>( mdspan_detail::is_submdspan_layout_preserving< layout_left, submdspan_subextents_type_t<extents_type, CanonicalSliceSpecifiers...>::rank(), CanonicalSliceSpecifiers...>{}, src, mapping::passkey(), mapping::strides_of(src), std::move(slices)... ))

friend

Compute the sub-mapping for a layout_left::mapping.

Template Parameters

CanonicalSliceSpecifiers types of the slice specifiers, one per dimension

Parameters

src	the source mapping to slice
slices	the slice specifiers

Uses slices to compute the sub-extents, sub-strides, and offset of the submdspan. The slices must be in canonical form.

Returns: A submdspan_mapping_result containing the sub-mapping and offset such that indexing the sub-mapping and adding the offset recovers the corresponding index in the original mapping.

Note

Constraints

sizeof...(CanonicalSliceSpecifiers) == extents_type::rank()
for each rank index k of src.extents(), CanonicalSliceSpecifiers...[k] is a valid submdspan slice type for the k-th extent of extents_type

Preconditions

for each rank index k of src.extents(), slices...[k] denotes a valid submdspan slice for the k-th extent of src.extents()

Remarks

the layout_left specialization of submdspan_mapping produces a layout_left::mapping if:
- for each k in the range [0, SubExtents::rank() - 1) , CanonicalSliceSpecifiers...[k] denotes full_extent_t; and
- for k equal to SubExtents::rank() - 1 , CanonicalSliceSpecifiers...[k] is a unit-stride slice type;
Otherwise, it produces a layout_stride::mapping.

The documentation for this class was generated from the following file:

arene/base/mdspan/layout_left.hpp
