arene::base::quantity< QuantityType, Rep > Class Template Reference

A class representing a quantity of a physical units type. More...

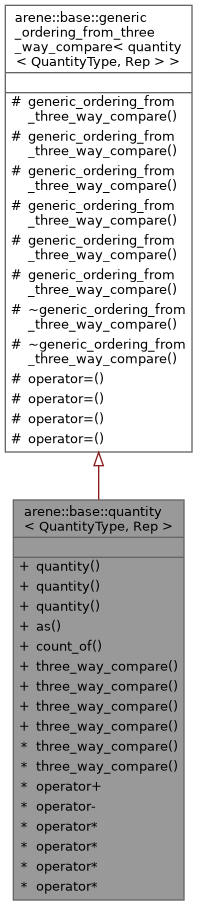

Inheritance diagram for arene::base::quantity< QuantityType, Rep >:

Public Member Functions
constexpr	quantity () noexcept
	Default construct with a default-constructed representation value.
template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t< quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, Rep > > > = nullptr>
constexpr	quantity (quantity< OtherQuantityType, OtherRep > const &other) noexcept
	Implicitly convert from a quantity with a different physical units type or representation type, scaling the value as appropriate.
constexpr	quantity (Rep store_value) noexcept
	Construct a quantity holding the specified representation value.
template<typename OtherQuantityType, typename OtherRep = Rep, constraints< std::enable_if_t< quantity_detail::is_explicitly_convertible_v< QuantityType, OtherQuantityType > > > = nullptr>
constexpr auto	as () const noexcept -> quantity< OtherQuantityType, OtherRep >
	Convert the stored quantity to the specified physical units type and representation.
template<typename OtherQuantityType, typename OtherRep = Rep, constraints< std::enable_if_t< quantity_detail::is_explicitly_convertible_v< QuantityType, OtherQuantityType > > > = nullptr>
constexpr auto	count_of () const noexcept -> OtherRep
	Get the numeric representation of the stored quantity, for the specified physical units type.

Static Public Member Functions
static constexpr auto	three_way_compare (quantity const &lhs, quantity const &rhs) noexcept -> strong_ordering
	three-way comparison between two quantities
template<typename OtherRep>
static constexpr auto	three_way_compare (quantity const &lhs, quantity< QuantityType, OtherRep > const &rhs) noexcept -> strong_ordering
	three-way comparison between two quantities with the same physical units but different representations
template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t< quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, std::common_type_t< Rep, OtherRep > > > > = nullptr>
static constexpr auto	three_way_compare (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> strong_ordering
	three-way comparison between two quantities with different physical units
template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t<!quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, std::common_type_t< Rep, OtherRep > > > > = nullptr>
static constexpr auto	three_way_compare (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> strong_ordering
	three-way comparison between two quantities with different physical units where one quantity type is not within the scaled range of the other

Friends
template<typename Q = QuantityType, constraints< typename units_combination_traits< Q, Q >::sum_type > = nullptr>
constexpr auto	operator+ (quantity const &lhs, quantity const &rhs) noexcept -> quantity< typename units_combination_traits< Q, Q >::sum_type, Rep >
	Add two quantities of the same type.
template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::ratio_type > = nullptr>
constexpr auto	operator/ (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> quantity< typename units_combination_traits< QuantityType, OtherQuantityType >::ratio_type, CommonRep >
	Divide two quantities.
template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>, constraints< std::enable_if_t<!std::is_integral< CommonRep >::value > > = nullptr>
constexpr auto	operator/ (quantity const &lhs, Scalar const &rhs) noexcept -> quantity< Q, CommonRep >
	Divide a quantity by a scalar.
template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::sum_type > = nullptr>
constexpr auto	operator+ (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> quantity< typename units_combination_traits< QuantityType, OtherQuantityType >::sum_type, CommonRep >
	Add two quantities.
template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::difference_type > = nullptr>
constexpr auto	operator- (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> quantity< typename units_combination_traits< QuantityType, OtherQuantityType >::difference_type, CommonRep >
	Subtract two quantities.
template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>>
constexpr auto	operator* (quantity const &lhs, Scalar const &rhs) noexcept -> quantity< Q, CommonRep >
	Multiply a quantity by a scalar.
template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>>
constexpr auto	operator* (Scalar const &lhs, quantity const &rhs) noexcept -> quantity< Q, CommonRep >
	Multiply a quantity by a scalar.
template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, std::enable_if_t<!std::is_integral< CommonRep >::value > > = nullptr>
constexpr auto	operator* (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> quantity< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, CommonRep >
	Multiply two quantities.
template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, std::enable_if_t< std::is_integral< CommonRep >::value >, std::enable_if_t< std::is_signed< CommonRep >::value||(std::is_unsigned< R >::value &&std::is_unsigned< OtherRep >::value)>>
constexpr auto	operator* (quantity const &lhs, quantity< OtherQuantityType, OtherRep > const &rhs) noexcept -> quantity< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, CommonRep >
	Multiply two quantities.
Friends inherited from arene::base::generic_ordering_from_three_way_compare< quantity< QuantityType, Rep > >

Detailed Description

template<typename QuantityType, typename Rep>
class arene::base::quantity< QuantityType, Rep >

A class representing a quantity of a physical units type.

Conversions and arithmetic are supported if indicated by the appropriate traits for the physical units tag type. This allows the mathematical operations of engineering equations to be performed using instances of quantity, ensuring that the units of the result are correct, and preventing errors due to passing incorrect values or values in the wrong units.

Template Parameters

QuantityType	A tag type representing the physical quantity
Rep	The arithmetic type to use for holding the value

Constructor & Destructor Documentation

quantity() [1/3]

template<typename QuantityType, typename Rep>

arene::base::quantity< QuantityType, Rep >::quantity ( )

inlineconstexprnoexcept

Default construct with a default-constructed representation value.

quantity() [2/3]

template<typename QuantityType, typename Rep>

arene::base::quantity< QuantityType, Rep >::quantity ( Rep store_value )

inlineexplicitconstexprnoexcept

Construct a quantity holding the specified representation value.

Parameters

store_value

The value to store

quantity() [3/3]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t< quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, Rep > > > = nullptr>

arene::base::quantity< QuantityType, Rep >::quantity ( quantity< OtherQuantityType, OtherRep > const & other )

inlineconstexprnoexcept

Implicitly convert from a quantity with a different physical units type or representation type, scaling the value as appropriate.

Precondition

the physical unit types are marked as being implicitly convertible, and the scaled value is guaranteed to be in range, for integral representations.

Template Parameters

OtherQuantityType	The physical units type of the source quantity
OtherRep	The representation type of the source quantity

Parameters

other

The other quantity

Member Function Documentation

as()

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep = Rep, constraints< std::enable_if_t< quantity_detail::is_explicitly_convertible_v< QuantityType, OtherQuantityType > > > = nullptr>

auto arene::base::quantity< QuantityType, Rep >::as ( ) const -> quantity<OtherQuantityType, OtherRep>

inlineconstexprnoexcept

Convert the stored quantity to the specified physical units type and representation.

The value is scaled as appropriate

Template Parameters

OtherQuantityType	The physical units type for which to retrieve the count
OtherRep	The representation type to return the count in; defaults to Rep

Returns

quantity<OtherQuantityType,OtherRep> holding the scaled value

Precondition

The physical units type QuantityType must be marked as explicitly convertible to OtherQuantityType

count_of()

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep = Rep, constraints< std::enable_if_t< quantity_detail::is_explicitly_convertible_v< QuantityType, OtherQuantityType > > > = nullptr>

auto arene::base::quantity< QuantityType, Rep >::count_of ( ) const -> OtherRep

inlineconstexprnoexcept

Get the numeric representation of the stored quantity, for the specified physical units type.

The value is scaled as appropriate

Template Parameters

OtherQuantityType	The physical units type for which to retrieve the count
OtherRep	The representation type to return the count in; defaults to Rep

Returns

OtherRep holding the scaled value

Precondition

The physical units type QuantityType must be marked as explicitly convertible to OtherQuantityType

three_way_compare() [1/4]

template<typename QuantityType, typename Rep>

static constexpr auto arene::base::quantity< QuantityType, Rep >::three_way_compare ( quantity< QuantityType, Rep > const & lhs, quantity< QuantityType, Rep > const & rhs ) -> strong_ordering

inlinestaticconstexprnoexcept

three-way comparison between two quantities

Parameters

lhs	The first object to compare
rhs	The second object to compare

Returns

strong_ordering strong_ordering::less if lhs is less than rhs, strong_ordering::equal if they hold the same value, and strong_ordering::greater if lhs is greater than rhs

three_way_compare() [2/4]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t< quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, std::common_type_t< Rep, OtherRep > > > > = nullptr>

static constexpr auto arene::base::quantity< QuantityType, Rep >::three_way_compare ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> strong_ordering

inlinestaticconstexprnoexcept

three-way comparison between two quantities with different physical units

Parameters

lhs	The first object to compare
rhs	The second object to compare

Returns

strong_ordering strong_ordering::less if lhs is less than rhs, strong_ordering::equal if they hold the same value, and strong_ordering::greater if lhs is greater than rhs

three_way_compare() [3/4]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, constraints< std::enable_if_t< quantity_detail::is_implicitly_convertible_v< OtherQuantityType, QuantityType > >, std::enable_if_t<!quantity_detail::scaled_value_in_range_v< OtherQuantityType, OtherRep, QuantityType, std::common_type_t< Rep, OtherRep > > > > = nullptr>

static constexpr auto arene::base::quantity< QuantityType, Rep >::three_way_compare ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> strong_ordering

inlinestaticconstexprnoexcept

three-way comparison between two quantities with different physical units where one quantity type is not within the scaled range of the other

Parameters

lhs	The first object to compare
rhs	The second object to compare

Returns

strong_ordering strong_ordering::less if lhs is less than rhs, strong_ordering::equal if they hold the same value, and strong_ordering::greater if lhs is greater than rhs

three_way_compare() [4/4]

template<typename QuantityType, typename Rep>

template<typename OtherRep>

static constexpr auto arene::base::quantity< QuantityType, Rep >::three_way_compare ( quantity< QuantityType, Rep > const & lhs, quantity< QuantityType, OtherRep > const & rhs ) -> strong_ordering

inlinestaticconstexprnoexcept

three-way comparison between two quantities with the same physical units but different representations

Parameters

lhs	The first object to compare
rhs	The second object to compare

Returns

strong_ordering strong_ordering::less if lhs is less than rhs, strong_ordering::equal if they hold the same value, and strong_ordering::greater if lhs is greater than rhs

Friends And Related Symbol Documentation

operator* [1/4]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, std::enable_if_t<!std::is_integral< CommonRep >::value > > = nullptr>

auto operator* ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> quantity<typename units_combination_traits<QuantityType, OtherQuantityType>::product_type, CommonRep>

friend

Multiply two quantities.

Template Parameters

OtherQuantityType	The physical units type of the other quantity
OtherRep	The representation type of the other quantity
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and OtherRep

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<product_type,CommonRep> A quantity with the physical units type specified as the product_type for QuantityType and OtherQuantityType, and a representation which is the common type of Rep and OtherRep, holding the product of the two quantity values

Precondition

There is a product_type specified in units_combination_traits<QuantityType,OtherQuantityType>

operator* [2/4]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::product_type, std::enable_if_t< std::is_integral< CommonRep >::value >, std::enable_if_t< std::is_signed< CommonRep >::value||(std::is_unsigned< R >::value &&std::is_unsigned< OtherRep >::value)>>

auto operator* ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> quantity<typename units_combination_traits<QuantityType, OtherQuantityType>::product_type, CommonRep>

friend

Multiply two quantities.

Template Parameters

OtherQuantityType	The physical units type of the other quantity
OtherRep	The representation type of the other quantity
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and OtherRep

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<product_type,CommonRep> A quantity with the physical units type specified as the product_type for QuantityType and OtherQuantityType, and a representation which is the common type of Rep and OtherRep, holding the left hand quantity value multiplied by the right hand quantity value

Precondition

There is a product_type specified in units_combination_traits<QuantityType,OtherQuantityType>

operator* [3/4]

template<typename QuantityType, typename Rep>

template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>>

auto operator* ( quantity< QuantityType, Rep > const & lhs, Scalar const & rhs ) -> quantity<Q, CommonRep>

friend

Multiply a quantity by a scalar.

Template Parameters

Scalar	The type of the scalar
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and Scalar

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<Q,CommonRep> A quantity with the same physical units type, and a representation which is the common type of Rep and Scalar, holding the product of the quantity value and the scalar value

operator* [4/4]

template<typename QuantityType, typename Rep>

template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>>

auto operator* ( Scalar const & lhs, quantity< QuantityType, Rep > const & rhs ) -> quantity<Q, CommonRep>

friend

Multiply a quantity by a scalar.

Template Parameters

Scalar	The type of the scalar
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and Scalar

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<Q,CommonRep> A quantity with the same physical units type, and a representation which is the common type of Rep and Scalar, holding the quantity value multiplied by the scalar value

operator+ [1/2]

template<typename QuantityType, typename Rep>

template<typename Q = QuantityType, constraints< typename units_combination_traits< Q, Q >::sum_type > = nullptr>

auto operator+ ( quantity< QuantityType, Rep > const & lhs, quantity< QuantityType, Rep > const & rhs ) -> quantity<typename units_combination_traits<Q, Q>::sum_type, Rep>

friend

Add two quantities of the same type.

Template Parameters

Q	Template parameter introduced to provide constraints; equivalent to QuantityType

Parameters

lhs	The first quantity
rhs	The second quantity

Returns

quantity<sum_type,Rep> A quantity with the physical units type specified as the sum_type for QuantityType and QuantityType, and a representation of Rep, holding the sum of the two quantity values

operator+ [2/2]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::sum_type > = nullptr>

auto operator+ ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> quantity<typename units_combination_traits<QuantityType, OtherQuantityType>::sum_type, CommonRep>

friend

Add two quantities.

Template Parameters

OtherQuantityType	The physical units type of the other quantity
OtherRep	The representation type of the other quantity
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep

Parameters

lhs	The first quantity
rhs	The second quantity

Returns

quantity<sum_type,CommonRep> A quantity with the physical units type specified as the sum_type for QuantityType and OtherQuantityType, and a representation which is the common type of Rep and OtherRep, holding the sum of the two quantity values

operator-

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::difference_type > = nullptr>

auto operator- ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> quantity<typename units_combination_traits<QuantityType, OtherQuantityType>::difference_type, CommonRep>

friend

Subtract two quantities.

Template Parameters

OtherQuantityType	The physical units type of the other quantity
OtherRep	The representation type of the other quantity
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep

Parameters

lhs	The first quantity
rhs	The second quantity

Returns

quantity<difference_type,CommonRep> A quantity with the physical units type specified as the difference_type for QuantityType and OtherQuantityType, and a representation which is the common type of Rep and OtherRep, holding the difference of the two quantity values

operator/ [1/2]

template<typename QuantityType, typename Rep>

template<typename OtherQuantityType, typename OtherRep, typename Q = QuantityType, typename R = Rep, typename CommonRep = std::common_type_t<Rep, OtherRep>, constraints< typename units_combination_traits< QuantityType, OtherQuantityType >::ratio_type > = nullptr>

auto operator/ ( quantity< QuantityType, Rep > const & lhs, quantity< OtherQuantityType, OtherRep > const & rhs ) -> quantity<typename units_combination_traits<QuantityType, OtherQuantityType>::ratio_type, CommonRep>

friend

Divide two quantities.

Template Parameters

OtherQuantityType	The physical units type of the other quantity
OtherRep	The representation type of the other quantity
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and OtherRep

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<ratio_type,CommonRep> A quantity with the physical units type specified as the ratio_type for QuantityType and OtherQuantityType, and a representation which is the common type of Rep and OtherRep, holding the left hand quantity value divided by the right hand quantity value

Precondition

There is a ratio_type specified in units_combination_traits<QuantityType,OtherQuantityType>

operator/ [2/2]

template<typename QuantityType, typename Rep>

template<typename Scalar, typename Q = QuantityType, typename R = Rep, constraints< std::enable_if_t<!quantity_detail::is_quantity_v< Scalar > > > = nullptr, typename CommonRep = std::common_type_t<Rep, Scalar>, constraints< std::enable_if_t<!std::is_integral< CommonRep >::value > > = nullptr>

auto operator/ ( quantity< QuantityType, Rep > const & lhs, Scalar const & rhs ) -> quantity<Q, CommonRep>

friend

Divide a quantity by a scalar.

Template Parameters

Scalar	The type of the scalar
Q	Template parameter introduced to provide constraints; equivalent to QuantityType
R	Template parameter introduced to provide constraints; equivalent to Rep
CommonRep	Template parameter introduced to provide constraints; the common representation type of Rep and Scalar

Parameters

lhs	The left hand operand
rhs	The right hand operand

Returns

quantity<Q,CommonRep> A quantity with the same physical units type, and a representation which is the common type of Rep and Scalar, holding the quantity value divided by the scalar value

---

The documentation for this class was generated from the following file:

• arene/base/units/quantity.hpp
