A multidimensional view of elements over a contiguous sequence of elements. More...

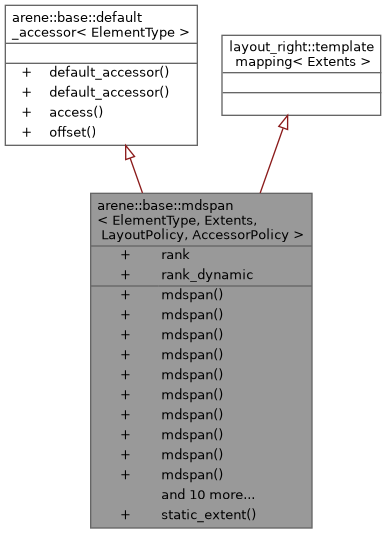

Inheritance diagram for arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >:

Public Types
using	accessor_type = AccessorPolicy
	The accessor policy type.

using	data_handle_type = typename accessor_type::data_handle_type
	The data handle type.

using	element_type = ElementType
	The element type.

using	extents_type = Extents
	The extents type.

using	index_type = typename extents_type::index_type
	The index type.

using	layout_type = LayoutPolicy
	The layout policy type.

using	mapping_type = typename layout_type::template mapping<extents_type>
	The mapping type.

using	rank_type = typename extents_type::rank_type
	The rank type.

using	reference = typename accessor_type::reference
	The reference type.

using	size_type = typename extents_type::size_type
	The size type.

using	value_type = std::remove_cv_t<element_type>
	The value type.

Public Member Functions
template<typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t<(Ext::rank_dynamic() > 0)>, std::enable_if_t< std::is_default_constructible< typename Acc::data_handle_type >::value >, std::enable_if_t< std::is_default_constructible< Map >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value >>
constexpr	mdspan () noexcept
	Default constructor.

template<class OtherIndexType, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, array< OtherIndexType, rank_dynamic()> const &extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<class OtherIndexType, std::size_t Size, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< Size==rank()>, std::enable_if_t< Size !=rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, array< OtherIndexType, Size > const &extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_constructible< Map, Ext const & >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, extents_type const &extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, mapping_type const &mapping_in) noexcept
	Construct mdspan with a data handle and mapping.

constexpr	mdspan (data_handle_type handle, mapping_type const &mapping_in, accessor_type const &accessor_in) noexcept
	Construct mdspan with a data handle, mapping, and accessor.

template<class... OtherIndexTypes, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, index_type >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< index_type, OtherIndexTypes >::value... > >, std::enable_if_t< sizeof...(OtherIndexTypes)==rank()\|\|sizeof...(OtherIndexTypes)==rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, OtherIndexTypes... extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<class OtherIndexType, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, span< OtherIndexType, rank_dynamic()> extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<class OtherIndexType, std::size_t Size, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< Size==rank()>, std::enable_if_t< Size !=rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>
constexpr	mdspan (data_handle_type handle, span< OtherIndexType, Size > extents_in) noexcept
	Construct mdspan with a data handle and extents.

template<class OtherElementType, class OtherExtents, class OtherLayoutPolicy, class OtherAccessor, constraints< std::enable_if_t< converting_constructor_is_explicit_v< OtherExtents, OtherLayoutPolicy, OtherAccessor > >, std::enable_if_t< std::is_constructible< mapping_type, typename OtherLayoutPolicy::template mapping< OtherExtents > const & >::value >, std::enable_if_t< std::is_constructible< accessor_type, OtherAccessor const & >::value >, std::enable_if_t< std::is_constructible< data_handle_type, typename OtherAccessor::data_handle_type const & >::value >, std::enable_if_t< std::is_constructible< extents_type, OtherExtents const & >::value > > = nullptr>
constexpr	mdspan (mdspan< OtherElementType, OtherExtents, OtherLayoutPolicy, OtherAccessor > const &other)
	Converting constructor from another `mdspan`.

template<class OtherElementType, class OtherExtents, class OtherLayoutPolicy, class OtherAccessor, constraints< std::enable_if_t<!converting_constructor_is_explicit_v< OtherExtents, OtherLayoutPolicy, OtherAccessor > >, std::enable_if_t< std::is_constructible< mapping_type, typename OtherLayoutPolicy::template mapping< OtherExtents > const & >::value >, std::enable_if_t< std::is_constructible< accessor_type, OtherAccessor const & >::value >, std::enable_if_t< std::is_constructible< data_handle_type, typename OtherAccessor::data_handle_type const & >::value >, std::enable_if_t< std::is_constructible< extents_type, OtherExtents const & >::value > > = nullptr>
constexpr	mdspan (mdspan< OtherElementType, OtherExtents, OtherLayoutPolicy, OtherAccessor > const &other)
	Converting constructor from another `mdspan`.

constexpr auto	accessor () const noexcept -> accessor_type const &
	Get the accessor.

constexpr auto	data_handle () const noexcept -> data_handle_type const &
	Get the data handle.

constexpr auto	empty () const noexcept -> bool
	Check if the size is zero.

constexpr auto	extent (rank_type dimension) const noexcept -> index_type
	Get the actual extent for the given dimension, returning the extent supplied to the constructor for dynamic extents.

constexpr auto	mapping () const noexcept -> mapping_type const &
	Get the mapping.

template<class OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value > > = nullptr>
constexpr auto	operator() (array< OtherIndexType, extents_type::rank > const &indices) const noexcept(arene::base::is_nothrow_invocable_v<, mdspan const &, array< OtherIndexType, extents_type::rank()> const & >) -> reference
	Access an element with an `array` of indices.

template<class... OtherIndexTypes, constraints< std::enable_if_t< std::is_convertible< OtherIndexTypes, index_type >::value >..., std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexTypes >::value >..., std::enable_if_t< sizeof...(OtherIndexTypes)==extents_type::rank > > = nullptr>
constexpr auto	operator() (OtherIndexTypes... indices) const noexcept(arene::base::is_nothrow_invocable_v< mapping_type const &, OtherIndexTypes &&... > &&noexcept(std::declval< accessor_type const & >().access(//std::declval< data_handle_type const & >(),//std::declval< std::size_t >()))) -> reference
	Access an element at the specified multi-dimensional index.

template<class OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value > > = nullptr>
constexpr auto	operator() (span< OtherIndexType, extents_type::rank > const indices) const noexcept(arene::base::is_nothrow_invocable_v<, mdspan const &, mdspan_detail::tuple_span< OtherIndexType, extents_type::rank > const & >) -> reference
	Access an mdspan element with a `span` of indices.

constexpr auto	size () const noexcept -> size_type
	Get the size of the multidimensional index space.

Static Public Member Functions
static constexpr auto	static_extent (rank_type dimension) noexcept -> std::size_t
	Get the static extent for the given dimension.

Static Public Attributes
static constexpr std::integral_constant< rank_type, Extents::rank()>	rank {}
	Get the number of dimensions.

static constexpr std::integral_constant< rank_type, Extents::rank_dynamic()>	rank_dynamic {}
	Get the number of dimensions with dynamic extent.

Friends
constexpr auto	swap (mdspan &lhs, mdspan &rhs) noexcept -> void
	swaps the contents

Detailed Description

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>
class arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >

A multidimensional view of elements over a contiguous sequence of elements.

Template Parameters

ElementType	the element type
Extents	an instantiation of `extents` representing the shape of the multidimensional index space
LayoutPolicy	a layout policy (defaults to `layout_right`)
AccessorPolicy	an accessor policy (defaults to `default_accessor<ElementType>`)

Backport of std::mdspan from C++23. The mdspan class template is a multidimensional array view that maps a multidimensional index to an element of the array. The mapping and element access policies are configurable, and the underlying array need not be contiguous or even exist in memory at all.

Member Typedef Documentation

◆ accessor_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::accessor_type = AccessorPolicy

The accessor policy type.

◆ data_handle_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::data_handle_type = typename accessor_type::data_handle_type

The data handle type.

◆ element_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::element_type = ElementType

The element type.

◆ extents_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::extents_type = Extents

The extents type.

◆ index_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::index_type = typename extents_type::index_type

The index type.

◆ layout_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::layout_type = LayoutPolicy

The layout policy type.

◆ mapping_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mapping_type = typename layout_type::template mapping<extents_type>

The mapping type.

◆ rank_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::rank_type = typename extents_type::rank_type

The rank type.

◆ reference

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::reference = typename accessor_type::reference

The reference type.

◆ size_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::size_type = typename extents_type::size_type

The size type.

◆ value_type

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

using arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::value_type = std::remove_cv_t<element_type>

The value type.

Constructor & Destructor Documentation

◆ mdspan() [1/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t<(Ext::rank_dynamic() > 0)>, std::enable_if_t< std::is_default_constructible< typename Acc::data_handle_type >::value >, std::enable_if_t< std::is_default_constructible< Map >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value >>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan ( )

inlineconstexprnoexcept

Default constructor.

Precondition: [0, mapping().required_span_size()) is an accessible range of data_handle() and accessor() for the values of mapping() and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor has no visible effect and creates an mdspan with all dynamic extents equal to zero. This implies that a default constructed span covers no elements.

◆ mdspan() [2/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class... OtherIndexTypes, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, index_type >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< index_type, OtherIndexTypes >::value... > >, std::enable_if_t< sizeof...(OtherIndexTypes)==rank()||sizeof...(OtherIndexTypes)==rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		OtherIndexTypes...	extents_in )

inlineexplicitconstexprnoexcept

Construct mdspan with a data handle and extents.

Template Parameters

OtherIndexTypes The types of the extents used to initialize the layout mapping

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Construct an mdspan initialized with a user supplied data_handle_type, a variadic list of extents which are converted to extents_type and used to initialize the layout mapping, and a default constructed accessor_type.

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

◆ mdspan() [3/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, std::size_t Size, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< Size==rank()>, std::enable_if_t< Size !=rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		span< OtherIndexType, Size >	extents_in )

inlineexplicitconstexprnoexcept

Construct mdspan with a data handle and extents.

Template Parameters

OtherIndexType The type of the extent values used to initialize the layout mapping

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Construct an mdspan initialized with a user supplied data_handle_type, a span of extents which are converted to extents_type and used to initialize the layout mapping, and a default constructed accessor_type.

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if N != rank_dynamic() .

◆ mdspan() [4/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		span< OtherIndexType, rank_dynamic()>	extents_in )

inlineconstexprnoexcept

Construct mdspan with a data handle and extents.

Template Parameters

OtherIndexType The type of the extent values used to initialize the layout mapping

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Construct an mdspan initialized with a user supplied data_handle_type, a span of extents which are converted to extents_type and used to initialize the layout mapping, and a default constructed accessor_type.

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if N != rank_dynamic() .

◆ mdspan() [5/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, std::size_t Size, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< Size==rank()>, std::enable_if_t< Size !=rank_dynamic()>, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		array< OtherIndexType, Size > const &	extents_in )

inlineexplicitconstexprnoexcept

Construct mdspan with a data handle and extents.

Template Parameters

OtherIndexType The type of the extent values used to initialize the layout mapping

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Construct an mdspan initialized with a user supplied data_handle_type, an array of extents which are converted to extents_type and used to initialize the layout mapping, and a default constructed accessor_type.

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if N != rank_dynamic() .

◆ mdspan() [6/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value >, std::enable_if_t< std::is_constructible< Map, Ext >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		array< OtherIndexType, rank_dynamic()> const &	extents_in )

inlineconstexprnoexcept

Construct mdspan with a data handle and extents.

Template Parameters

OtherIndexType The type of the extent values used to initialize the layout mapping

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Construct an mdspan initialized with a user supplied data_handle_type, an array of extents which are converted to extents_type and used to initialize the layout mapping, and a default constructed accessor_type.

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if N != rank_dynamic() .

◆ mdspan() [7/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<typename Ext = Extents, typename Map = mapping_type, typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_constructible< Map, Ext const & >::value >, std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		extents_type const &	extents_in )

inlineconstexprnoexcept

Construct mdspan with a data handle and extents.

Parameters

handle	A user supplied data handle
extents_in	User supplied extents

Precondition: [0, mapping().required_span_size()) is an accessible range of handle and accessor() for the values of mapping() and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Construct an mdspan initialized with a user supplied data_handle_type, a user supplied extents_type used to initialize the layout mapping, and a default constructed accessor_type.

◆ mdspan() [8/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<typename Acc = AccessorPolicy, constraints< std::enable_if_t< std::is_default_constructible< Acc >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		mapping_type const &	mapping_in )

inlineconstexprnoexcept

Construct mdspan with a data handle and mapping.

Parameters

handle	A user supplied data handle
mapping_in	User supplied mapping

Precondition: [0, mapping_in.required_span_size()) is an accessible range of handle and accessor() for the value of accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Construct an mdspan initialized with a user supplied data_handle_type, a user supplied mapping, and a default constructed accessor_type.

◆ mdspan() [9/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan	(	data_handle_type	handle,
		mapping_type const &	mapping_in,
		accessor_type const &	accessor_in )

inlineconstexprnoexcept

Construct mdspan with a data handle, mapping, and accessor.

Parameters

handle	A user supplied data handle
mapping_in	User supplied mapping
accessor_in	User supplied accessor

Precondition: [0, mapping_in.required_span_size()) is an accessible range of handle and accessor_in. This precondition is not checked, but violating it is undefined behavior.

Construct an mdspan initialized with a user supplied data_handle_type, a user supplied mapping, and a user supplied accessor_type.

◆ mdspan() [10/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherElementType, class OtherExtents, class OtherLayoutPolicy, class OtherAccessor, constraints< std::enable_if_t< converting_constructor_is_explicit_v< OtherExtents, OtherLayoutPolicy, OtherAccessor > >, std::enable_if_t< std::is_constructible< mapping_type, typename OtherLayoutPolicy::template mapping< OtherExtents > const & >::value >, std::enable_if_t< std::is_constructible< accessor_type, OtherAccessor const & >::value >, std::enable_if_t< std::is_constructible< data_handle_type, typename OtherAccessor::data_handle_type const & >::value >, std::enable_if_t< std::is_constructible< extents_type, OtherExtents const & >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan ( mdspan< OtherElementType, OtherExtents, OtherLayoutPolicy, OtherAccessor > const & other )

inlineexplicitconstexpr

Converting constructor from another mdspan.

Template Parameters

OtherElementType	The element type of the other `mdspan`
OtherExtents	The extents type of the other `mdspan`
OtherLayoutPolicy	The layout policy of the other `mdspan`
OtherAccessor	The accessor policy of the other `mdspan`

Parameters

other The other mdspan to construct from

Precondition: For each rank index r of extents_type, static_extent(r) == dynamic_extent || static_extent(r) == other.extent(r) is true, otherwise this is an ARENE_PRECONDITION violation.; [0, mapping().required_span_size()) is an accessible range of handle() and accessor() for values of handle(), mapping(), and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if !std::is_convertible<typename OtherLayoutPolicy::template mapping<OtherExtents> const&, mapping_type>::value || !std::is_convertible<OtherAccessor const&, accessor_type>::value;

◆ mdspan() [11/11]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherElementType, class OtherExtents, class OtherLayoutPolicy, class OtherAccessor, constraints< std::enable_if_t<!converting_constructor_is_explicit_v< OtherExtents, OtherLayoutPolicy, OtherAccessor > >, std::enable_if_t< std::is_constructible< mapping_type, typename OtherLayoutPolicy::template mapping< OtherExtents > const & >::value >, std::enable_if_t< std::is_constructible< accessor_type, OtherAccessor const & >::value >, std::enable_if_t< std::is_constructible< data_handle_type, typename OtherAccessor::data_handle_type const & >::value >, std::enable_if_t< std::is_constructible< extents_type, OtherExtents const & >::value > > = nullptr>

arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mdspan ( mdspan< OtherElementType, OtherExtents, OtherLayoutPolicy, OtherAccessor > const & other )

inlineconstexpr

Converting constructor from another mdspan.

Template Parameters

OtherElementType	The element type of the other `mdspan`
OtherExtents	The extents type of the other `mdspan`
OtherLayoutPolicy	The layout policy of the other `mdspan`
OtherAccessor	The accessor policy of the other `mdspan`

Parameters

other The other mdspan to construct from

Precondition: For each rank index r of extents_type, static_extent(r) == dynamic_extent || static_extent(r) == other.extent(r) is true, otherwise this is an ARENE_PRECONDITION violation.; [0, mapping().required_span_size()) is an accessible range of handle() and accessor() for values of handle(), mapping(), and accessor() after the invocation of this constructor. This precondition is not checked, but violating it is undefined behavior.

Note: This constructor is explicit only if !std::is_convertible<typename OtherLayoutPolicy::template mapping<OtherExtents> const&, mapping_type>::value || !std::is_convertible<OtherAccessor const&, accessor_type>::value;

Member Function Documentation

◆ accessor()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::accessor ( ) const -> accessor_type const&

inlineconstexprnoexcept

Get the accessor.

Returns: A reference to the accessor object

◆ data_handle()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::data_handle ( ) const -> data_handle_type const&

inlineconstexprnoexcept

Get the data handle.

Returns: The data handle

◆ empty()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::empty ( ) const -> bool

inlineconstexprnoexcept

Check if the size is zero.

Returns: true if the size is zero, false otherwise

◆ extent()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::extent ( rank_type dimension ) const -> index_type

inlineconstexprnoexcept

Get the actual extent for the given dimension, returning the extent supplied to the constructor for dynamic extents.

Parameters

dimension The index of the dimension for which to get the extent

Returns: The extent of the specified dimension

◆ mapping()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::mapping ( ) const -> mapping_type const&

inlineconstexprnoexcept

Get the mapping.

Returns: A reference to the mapping object

◆ operator()() [1/3]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value > > = nullptr>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::operator() ( array< OtherIndexType, extents_type::rank > const & indices ) const -> reference

inlineconstexprnoexcept

Access an element with an array of indices.

Template Parameters

OtherIndexType Index type contained by the array

Parameters

indices The multi-dimensional index as an array

Returns: reference to the indices-th element of the mdspan

◆ operator()() [2/3]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class... OtherIndexTypes, constraints< std::enable_if_t< std::is_convertible< OtherIndexTypes, index_type >::value >..., std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexTypes >::value >..., std::enable_if_t< sizeof...(OtherIndexTypes)==extents_type::rank > > = nullptr>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::operator() ( OtherIndexTypes... indices ) const -> reference

inlineconstexprnoexcept

Access an element at the specified multi-dimensional index.

Template Parameters

OtherIndexTypes Non-type template parameter pack of indices

Parameters

indices The multi-dimensional index as a variadic

Returns: reference to the indices-th element of the mdspan

◆ operator()() [3/3]

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

template<class OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType const &, index_type >::value >, std::enable_if_t< std::is_nothrow_constructible< index_type, OtherIndexType const & >::value > > = nullptr>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::operator() ( span< OtherIndexType, extents_type::rank > const indices ) const -> reference

inlineconstexprnoexcept

Access an mdspan element with a span of indices.

Template Parameters

OtherIndexType Index type contained by the span

Parameters

indices The multi-dimensional index as an span

Returns: reference to the indices-th element of the mdspan

◆ size()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::size ( ) const -> size_type

inlineconstexprnoexcept

Get the size of the multidimensional index space.

Returns: The size of the multidimensional index space

◆ static_extent()

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

static constexpr auto arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::static_extent ( rank_type dimension ) -> std::size_t

inlinestaticconstexprnoexcept

Get the static extent for the given dimension.

Parameters

dimension The index of the dimension for which to get the static extent

Returns: The value from Extents for the specified dimension

Friends And Related Symbol Documentation

◆ swap

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

auto swap	(	mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy > &	lhs,
		mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy > &	rhs ) -> void

friend

swaps the contents

Parameters

lhs	left `mdspan` value to swap
rhs	right `mdspan` value to swap

Member Data Documentation

◆ rank

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

std::integral_constant<rank_type, Extents::rank()> arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::rank {}

staticconstexpr

Get the number of dimensions.

Returns: The rank of the mdspan

◆ rank_dynamic

template<typename ElementType, typename Extents, typename LayoutPolicy = layout_right, typename AccessorPolicy = default_accessor<ElementType>>

std::integral_constant<rank_type, Extents::rank_dynamic()> arene::base::mdspan< ElementType, Extents, LayoutPolicy, AccessorPolicy >::rank_dynamic {}

staticconstexpr

Get the number of dimensions with dynamic extent.

Returns: The dynamic rank of the mdspan

The documentation for this class was generated from the following file:

arene/base/mdspan/mdspan.hpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ accessor_type

◆ data_handle_type

◆ element_type

◆ extents_type

◆ index_type

◆ layout_type

◆ mapping_type

◆ rank_type

◆ reference

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ mdspan() [1/11]

◆ mdspan() [2/11]

◆ mdspan() [3/11]

◆ mdspan() [4/11]

◆ mdspan() [5/11]

◆ mdspan() [6/11]

◆ mdspan() [7/11]

◆ mdspan() [8/11]

◆ mdspan() [9/11]

◆ mdspan() [10/11]

◆ mdspan() [11/11]

Member Function Documentation

◆ accessor()

◆ data_handle()

◆ empty()

◆ extent()

◆ mapping()

◆ operator()() [1/3]

◆ operator()() [2/3]

◆ operator()() [3/3]

◆ size()

◆ static_extent()

Friends And Related Symbol Documentation

◆ swap

Member Data Documentation

◆ rank

◆ rank_dynamic
