represents a multidimensional index space More...

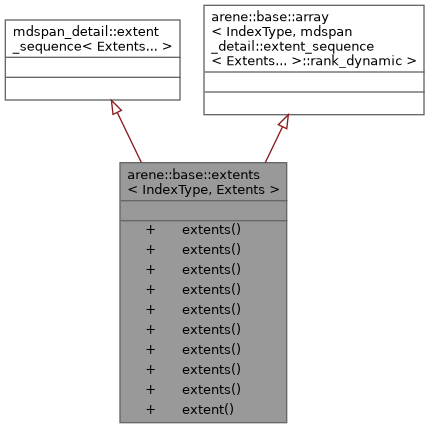

Inheritance diagram for arene::base::extents< IndexType, Extents >:

Public Types
using	index_type = IndexType
	The specified index type for the extents.

using	rank_type = typename extent_sequence_type::rank_type
	The type of the rank.

using	size_type = std::make_unsigned_t<index_type>
	An unsigned type for representing an index into a dimension.

Public Member Functions
constexpr	extents () noexcept
	Construct an `extents` object with all the dynamic extents set to zero, if any.

template<typename OtherIndexType, std::size_t N, constraints< std::enable_if_t< N==rank()>, std::enable_if_t< N !=rank_dynamic()>, std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>
constexpr	extents (array< OtherIndexType, N > const &exts) noexcept
	Construct an `extents` object with the specified list of extents.

template<typename OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>
constexpr	extents (array< OtherIndexType, rank_dynamic()> const &exts) noexcept
	Construct an `extents` object with the specified list of extents.

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< !copy_from_other_extents_is_explicit_v< OtherIndexType, mdspan_detail::extent_sequence< OtherExtents... > > >, std::enable_if_t< sizeof...(OtherExtents)==rank()>, std::enable_if_t<(Extents==OtherExtents)\|\|(Extents==dynamic_extent)\|\|(OtherExtents==dynamic_extent)>... > = nullptr>
constexpr	extents (extents< OtherIndexType, OtherExtents... > const &source_extents) noexcept
	Construct an `extents` object with the same set of extents as the source extents object.

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< copy_from_other_extents_is_explicit_v< OtherIndexType, mdspan_detail::extent_sequence< OtherExtents... > > >, std::enable_if_t< sizeof...(OtherExtents)==rank()>, std::enable_if_t<(Extents==OtherExtents)\|\|(Extents==dynamic_extent)\|\|(OtherExtents==dynamic_extent)>... > = nullptr>
constexpr	extents (extents< OtherIndexType, OtherExtents... > const &source_extents) noexcept
	Construct an `extents` object with the same set of extents as the source extents object.

template<typename... OtherIndexTypes, constraints< std::enable_if_t< sizeof...(OtherIndexTypes)==rank_dynamic()>, std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, IndexType >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< IndexType, OtherIndexTypes >::value... > > > = nullptr>
constexpr	extents (OtherIndexTypes... exts) noexcept
	Construct an `extents` object with the specified list of dynamic extents.

template<typename... OtherIndexTypes, constraints< std::enable_if_t< sizeof...(OtherIndexTypes)==rank()>, std::enable_if_t< sizeof...(OtherIndexTypes) !=rank_dynamic()>, std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, IndexType >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< IndexType, OtherIndexTypes >::value... > > > = nullptr>
constexpr	extents (OtherIndexTypes... exts) noexcept
	Construct an `extents` object with the specified list of extents.

template<typename OtherIndexType, std::size_t N, constraints< std::enable_if_t< N==rank()>, std::enable_if_t< N !=rank_dynamic()>, std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>
constexpr	extents (span< OtherIndexType, N > exts) noexcept
	Construct an `extents` object with the specified list of extents.

template<typename OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>
constexpr	extents (span< OtherIndexType, rank_dynamic()> exts) noexcept
	Construct an `extents` object with the specified list of extents.

constexpr auto	extent (rank_type dimension) const noexcept -> index_type
	Get the actual extent for the given dimension, returning the extent supplied to the constructor for dynamic extents.

Friends
template<typename OtherIndexType, std::size_t... OtherExtents>
constexpr auto	operator!= (extents const &lhs, extents< OtherIndexType, OtherExtents... > const &rhs) noexcept -> bool
	Compare two extents objects to see if they have different values.

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< rank() !=sizeof...(OtherExtents)> > = nullptr>
constexpr auto	operator== (extents const &, extents< OtherIndexType, OtherExtents... > const &) noexcept -> bool
	Compare two extents objects with different ranks to see if they have the same values.

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< rank()==sizeof...(OtherExtents)> > = nullptr>
constexpr auto	operator== (extents const &lhs, extents< OtherIndexType, OtherExtents... > const &rhs) noexcept -> bool
	Compare two extents objects with the same rank to see if they have the same values.

Detailed Description

template<typename IndexType, std::size_t... Extents>
class arene::base::extents< IndexType, Extents >

represents a multidimensional index space

Template Parameters

IndexType	the index type
Extents	the static extents of each dimension

Member Typedef Documentation

◆ index_type

template<typename IndexType, std::size_t... Extents>

using arene::base::extents< IndexType, Extents >::index_type = IndexType

The specified index type for the extents.

◆ rank_type

template<typename IndexType, std::size_t... Extents>

using arene::base::extents< IndexType, Extents >::rank_type = typename extent_sequence_type::rank_type

The type of the rank.

◆ size_type

template<typename IndexType, std::size_t... Extents>

using arene::base::extents< IndexType, Extents >::size_type = std::make_unsigned_t<index_type>

An unsigned type for representing an index into a dimension.

Constructor & Destructor Documentation

◆ extents() [1/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t N, constraints< std::enable_if_t< N==rank()>, std::enable_if_t< N !=rank_dynamic()>, std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( span< OtherIndexType, N > exts )

inlineexplicitconstexprnoexcept

Construct an extents object with the specified list of extents.

Template Parameters

OtherIndexType	The type of the supplied extents
N	The number of supplied extents

Parameters

exts	The supplied extents

Precondition: OtherIndexType must be convertible to IndexType without throwing; Each of exts must be representable as a non-negative value of IndexType; The size of the span, N , must be equal to rank(); For each extent in Extents, if the corresponding value is not dynamic_extent, then the provided value, when converted to IndexType, must be the same as the specified value in Extents

◆ extents() [2/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( span< OtherIndexType, rank_dynamic()> exts )

inlineconstexprnoexcept

Construct an extents object with the specified list of extents.

Template Parameters

OtherIndexType The type of the supplied extents

Parameters

exts	The supplied extents

Precondition: OtherIndexType must be convertible to IndexType without throwing; The size of the span must be equal to rank() or dynamic_rank(); Each of exts must be representable as a non-negative value of IndexType

◆ extents() [3/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, constraints< std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( array< OtherIndexType, rank_dynamic()> const & exts )

inlineconstexprnoexcept

Construct an extents object with the specified list of extents.

Template Parameters

OtherIndexType The type of the supplied extents

Parameters

exts	The supplied extents

Precondition: OtherIndexType must be convertible to IndexType without throwing; The size of the array must be equal to rank() or dynamic_rank(); Each of exts must be representable as a non-negative value of IndexType; For each extent in Extents, if the corresponding value is not dynamic_extent, then the provided value, when converted to IndexType, must be the same as the specified value in Extents

◆ extents() [4/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t N, constraints< std::enable_if_t< N==rank()>, std::enable_if_t< N !=rank_dynamic()>, std::enable_if_t< std::is_convertible< OtherIndexType, IndexType >::value >, std::enable_if_t< std::is_nothrow_constructible< IndexType, OtherIndexType >::value > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( array< OtherIndexType, N > const & exts )

inlineexplicitconstexprnoexcept

Construct an extents object with the specified list of extents.

Template Parameters

OtherIndexType	The type of the supplied extents
N	The number of supplied extents

Parameters

exts	The supplied extents

Precondition: OtherIndexType must be convertible to IndexType without throwing; The size of the array, N , must be equal to rank(); Each of exts must be representable as a non-negative value of IndexType; For each extent in Extents, if the corresponding value is not dynamic_extent, then the provided value, when converted to IndexType, must be the same as the specified value in Extents

◆ extents() [5/9]

template<typename IndexType, std::size_t... Extents>

template<typename... OtherIndexTypes, constraints< std::enable_if_t< sizeof...(OtherIndexTypes)==rank_dynamic()>, std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, IndexType >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< IndexType, OtherIndexTypes >::value... > > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( OtherIndexTypes... exts )

inlineexplicitconstexprnoexcept

Construct an extents object with the specified list of dynamic extents.

Template Parameters

OtherIndexTypes The types of the supplied dynamic extents

Parameters

exts	The supplied dynamic extents

Precondition: Each of OtherIndexTypes must be convertible to IndexType without throwing; Each of exts must be representable as a non-negative value of IndexType

◆ extents() [6/9]

template<typename IndexType, std::size_t... Extents>

template<typename... OtherIndexTypes, constraints< std::enable_if_t< sizeof...(OtherIndexTypes)==rank()>, std::enable_if_t< sizeof...(OtherIndexTypes) !=rank_dynamic()>, std::enable_if_t< all_of_v< std::is_convertible< OtherIndexTypes, IndexType >::value... > >, std::enable_if_t< all_of_v< std::is_nothrow_constructible< IndexType, OtherIndexTypes >::value... > > > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( OtherIndexTypes... exts )

inlineexplicitconstexprnoexcept

Construct an extents object with the specified list of extents.

Template Parameters

OtherIndexTypes The types of the supplied extents

Parameters

exts	The supplied extents

Precondition: Each of OtherIndexTypes must be convertible to IndexType without throwing; Each of exts must be representable as a non-negative value of IndexType; For each extent in Extents, if the corresponding value is not dynamic_extent, then the provided value, when converted to IndexType, must be the same as the specified value in Extents

◆ extents() [7/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< !copy_from_other_extents_is_explicit_v< OtherIndexType, mdspan_detail::extent_sequence< OtherExtents... > > >, std::enable_if_t< sizeof...(OtherExtents)==rank()>, std::enable_if_t<(Extents==OtherExtents)||(Extents==dynamic_extent)||(OtherExtents==dynamic_extent)>... > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( extents< OtherIndexType, OtherExtents... > const & source_extents )

inlineconstexprnoexcept

Construct an extents object with the same set of extents as the source extents object.

Template Parameters

OtherIndexType	The index type of the supplied extents
OtherExtents	The supplied extents

Parameters

source_extents The extents object to copy the extents from

Precondition: The other extents must match fixed extents, or be in range of IndexType for dynamic extents

◆ extents() [8/9]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< copy_from_other_extents_is_explicit_v< OtherIndexType, mdspan_detail::extent_sequence< OtherExtents... > > >, std::enable_if_t< sizeof...(OtherExtents)==rank()>, std::enable_if_t<(Extents==OtherExtents)||(Extents==dynamic_extent)||(OtherExtents==dynamic_extent)>... > = nullptr>

arene::base::extents< IndexType, Extents >::extents ( extents< OtherIndexType, OtherExtents... > const & source_extents )

inlineexplicitconstexprnoexcept

Construct an extents object with the same set of extents as the source extents object.

Template Parameters

OtherIndexType	The index type of the supplied extents
OtherExtents	The supplied extents

Parameters

source_extents The extents object to copy the extents from

Precondition: The other extents must match fixed extents, or be in range of IndexType for dynamic extents

◆ extents() [9/9]

template<typename IndexType, std::size_t... Extents>

arene::base::extents< IndexType, Extents >::extents ( )

inlineconstexprnoexcept

Construct an extents object with all the dynamic extents set to zero, if any.

Member Function Documentation

◆ extent()

template<typename IndexType, std::size_t... Extents>

auto arene::base::extents< IndexType, Extents >::extent ( rank_type dimension ) const -> index_type

inlineconstexprnoexcept

Get the actual extent for the given dimension, returning the extent supplied to the constructor for dynamic extents.

Parameters

dimension The index of the dimension for which to get the extent

Returns: The extent of the specified dimension

Friends And Related Symbol Documentation

◆ operator!=

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t... OtherExtents>

auto operator!=	(	extents< IndexType, Extents > const &	lhs,
		extents< OtherIndexType, OtherExtents... > const &	rhs ) -> bool

friend

Compare two extents objects to see if they have different values.

Template Parameters

OtherIndexType	The index type of the other extents type
OtherExtents	The extents of the other extents type

Parameters

lhs	The first `extents` object to compare
rhs	The second `extents` object to compare

Returns: The inverse of lhs==rhs

◆ operator== [1/2]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< rank() !=sizeof...(OtherExtents)> > = nullptr>

auto operator==	(	extents< IndexType, Extents > const &	,
		extents< OtherIndexType, OtherExtents... > const &	) -> bool

friend

Compare two extents objects with different ranks to see if they have the same values.

Template Parameters

OtherIndexType	The index type of the other extents type
OtherExtents	The extents of the other extents type

Returns: false.

◆ operator== [2/2]

template<typename IndexType, std::size_t... Extents>

template<typename OtherIndexType, std::size_t... OtherExtents, constraints< std::enable_if_t< rank()==sizeof...(OtherExtents)> > = nullptr>

auto operator==	(	extents< IndexType, Extents > const &	lhs,
		extents< OtherIndexType, OtherExtents... > const &	rhs ) -> bool

friend

Compare two extents objects with the same rank to see if they have the same values.

Template Parameters

OtherIndexType	The index type of the other extents type
OtherExtents	The extents of the other extents type

Parameters

lhs	The first `extents` object to compare
rhs	The second `extents` object to compare

Returns: true if lhs.extent(index) is equal to rhs.extent(index) for all index values in [0,lhs.rank()) otherwise false.

The documentation for this class was generated from the following file:

arene/base/mdspan/extents.hpp
